4.5-meter rear-mounted mold cement slipform paver in the field of rural road construction
Application conditions:

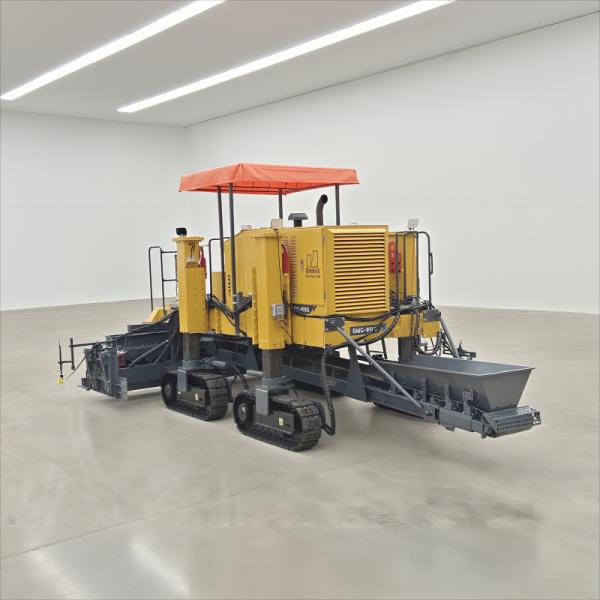

The SMC - 6500 slipform paver is an independently developed concrete construction equipment by our company, mainly used in high - standard pavement projects. It boasts a large power reserve, full electronic control, full hydraulic drive, and four - track travel. Equipped with an automatic steering and automatic leveling system, it can complete the whole process of cement concrete feeding, distribution, vibration, compaction, paving, and smoothing in one go. This significantly improves the construction quality and speed compared with traditional paving processes. The newly designed rear - mounted mold can well solve the problem of insufficient road base clearance and realize negative clearance construction. It is mostly used for paving county and rural roads without road shoulders.
Functional features:
1. Shangchai 6-cylinder engine, electric preheating, high power, suitable for construction in high-altitude areas; High pressure common rail control, compliant with National III emission standards (optional for National IV).
2. The advanced industrial CAN bus communication system is used between the control panel and the main control box, which simplifies and ensures reliability of the system.
3. Adopting a user-friendly widescreen LCD display to show the working status of the entire machine, with intuitive and clear fault indications.
4. Full track steering system and full track positioning function, realizing multiple steering modes. Under various working conditions, the machine can quickly position itself, which is simple and efficient.
5. Equipped with an automatic leveling system to ensure the smoothness of the paved road surface and its auxiliary facilities.
6. Equipped with automatic steering function, it creates perfect linearity during the paving process.
7. Equipped with four elongated tracks, effectively enhancing ground adhesion ability.
8. Rear mounted mold for negative gap construction, commonly used for paving on rural roads and shoulder less roads.The high-pressure water gun system is equipped with a flushing high-pressure water gun.
9. Equipped with a 550L large water tank for worry free flushing.
Technical parameters
| Paving width | 2500-4500 mm |
| Paving height | 0-300 mm |
| Flatness | ±3 mm/3m |
| Paving Speed | 0-15 m/min |
| Driving speed | 0-1.8 km/h |
| Vibrator brand | WYCO |
| Vibrator interface | 12 |
| Vibrator frequency | 0-167 Hz |
| Frul tank | 320L |
| Water tank | 550L |
| Engine | Shangchai SC7H180G3 |
| Rate power | 132Kw/2200rpm |
| Emission standard | Phase Ⅳ(Phase Ⅲ optional) |
| Feed system | belt |
| Weight | 19.5 t |
| Transport size(L*W*H) | 7500*3000*2800 mm |

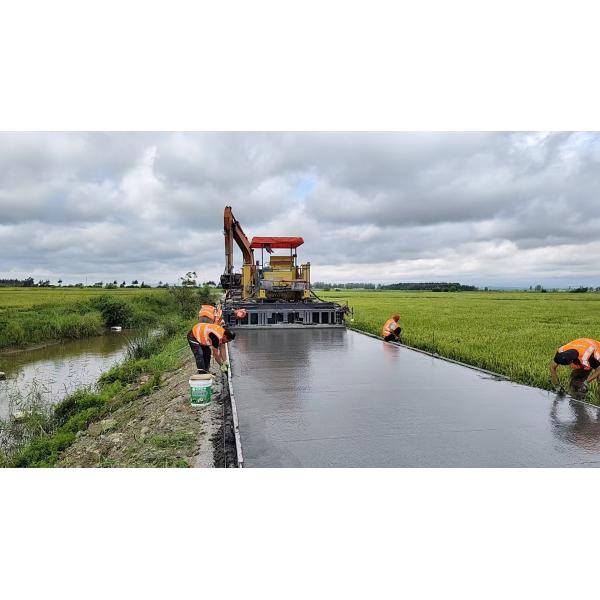

Cases:
|
|
SMC - 6500 Concrete Slipform Paver: Advanced Concrete Paving Solution Images
|
